Pipe         Flanges & Pipe Fittings...   Hydraulic Flanges &         Fittings... All Products 100% Export To The World



       ISO9001    Registered






                 Hydraulic Flanges & Fittings,                                                   ISO 9001 Registered.                                                  Modern is touching the Future!

A Company with  Mission

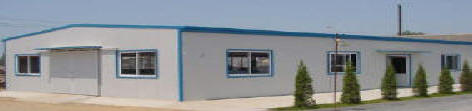

The State Art of Facilities

Dalian Modern Machinery Co.,Ltd. ISO 9001:2000  Registered  has specialized in the production of various  pipe flanges, pipe fittings, hydraulic flanges and fittings, cylinder end caps for many years,  as a manufacturer and manufacturers' representative in China,  Modern has supplied many kinds of  flanges and fittings since it's establish  in 1994,  which includes pipe flanges and  fittings, SAE J518/ISO6162 hydraulic flanges and SAE J514/SAE1453 /ISO8434 fittings, standard and customers' design based on material carbon steel and stainless steel. Competitive price, delivery just in time, quality and just the people are   4   reasons you would like  to do business with us.  We also have the skill, knowledge, experience, patterns, much materials in stock ready for manufacturing right now for you, which  eliminate your lead time period of ordering, and  stable supply period, which will help you to save your money.  Be sure that we are the suitable   people to supply suitable products  in the related fields.

 Products Line



       1-Hydraulic Flanges

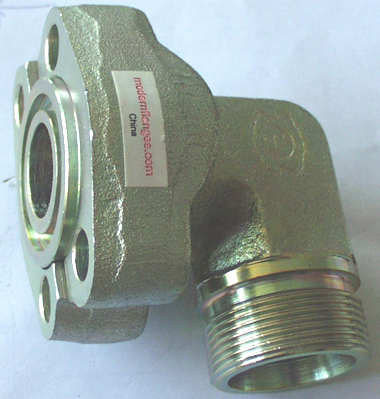

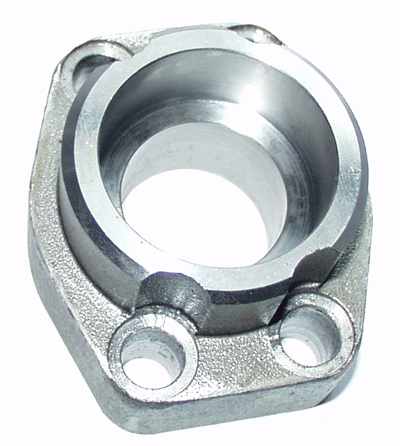

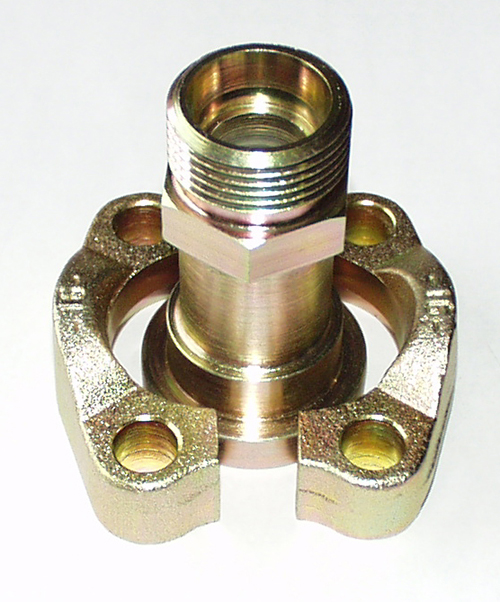

  • Split Flange as per SAE J518/ ISO6162 SAE Flanges

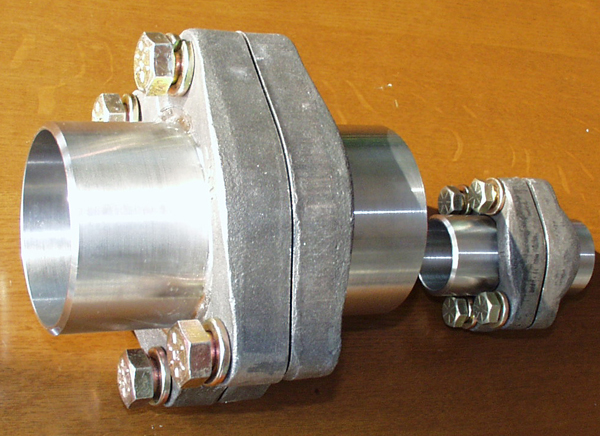

    SAE 4-Bolt Welded Ports

  • Butt weld / Butt TIG weld

  • Socket weld (deep & flat)

    SAE 4-Bolt Threaded Ports

  • O-ring straight thread per SAE J1926

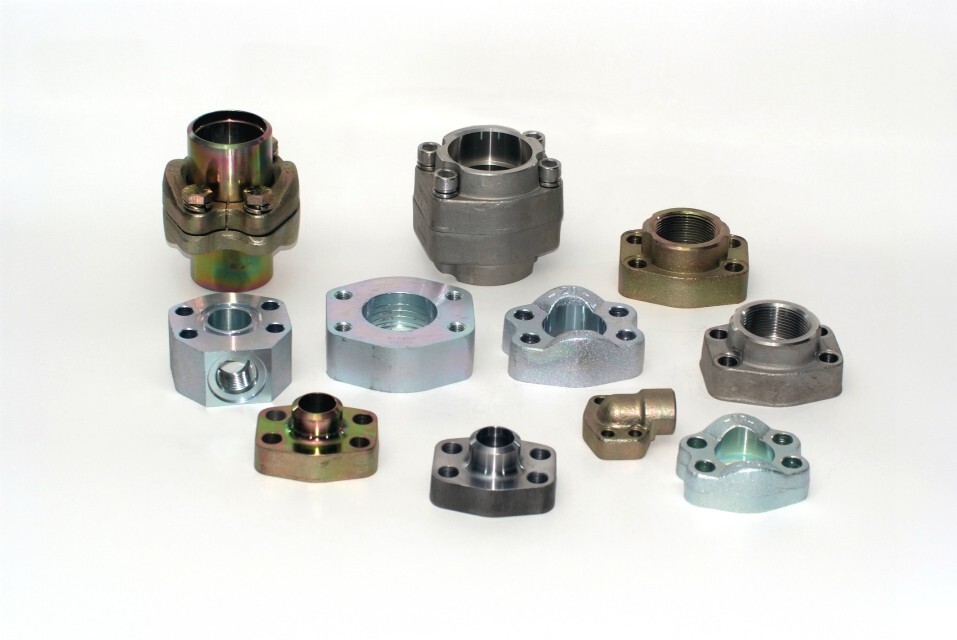

Hydraulic Flanges and Fittings

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge View

Click to Enlarge View

Click to Enlarge view

Click to View these kind of Products

Click to view in large size

  • O-ring face seal thread per SAE J1453

  • Metric O-ring straight thread per ISO 6149

  • NPTF, BSPP, BSPT threads

    Square 4-Bolt Welded Ports

  • Socket weld

  • Butt weld

    Square 4-Bolt Threaded Ports

  • O-ring straight thread per SAE J1926

  • ORFS  per SAE J1453

  • Metric O-ring straight thread per ISO 6149

  • NPTF, BSP, BSPT threads









Concepts and Capabilities:



  Quality Does Not Cost More !

  No Order Too Small !

  CNC/MC Machining

  CAD/CAPP/CAM/Solid Work Files Accepted!

  Pattern Manufacturing and fixture Checking!

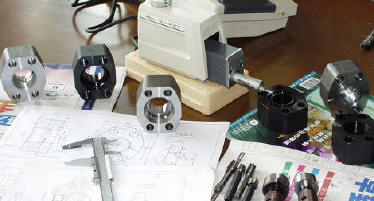

  Control Quality From Start To Finish !

  SPC/Cpk value available

  OEM acceptable

  MTR Certificate provided

  PPAP Certificate provided

  FMEA Certificate provided

  Inspection Report  provided

2-Hydraulic Fittings

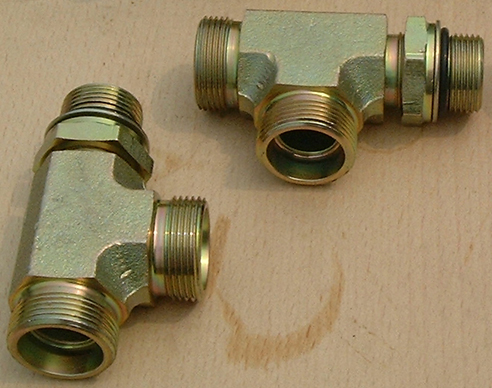

     International Standard Hydraulic

  • Fittings

     Hydraulic Metric Standard Fittings

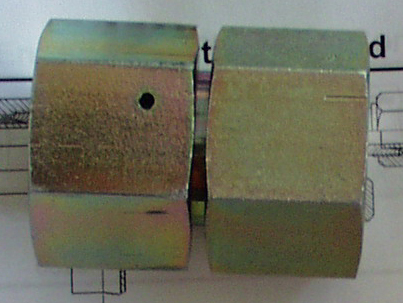

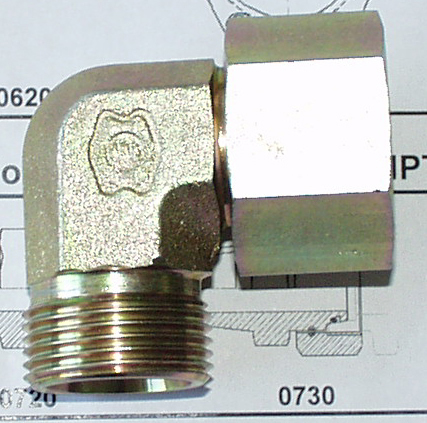

  • 24 < Compression Fittings  ISO 8434-1

  • 37 < Flared Fittings  ISO 8434-2

  • O-Ring face seal fittings ISO 8434-3

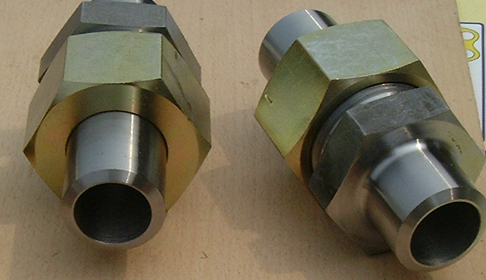

  •  24 < Cone Connectors with O-Ring weld-On nipples ISO8434-4

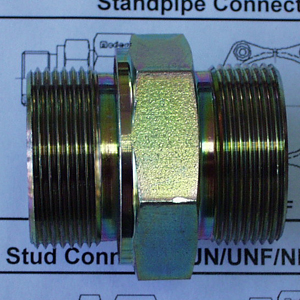

SAE Standard Hydraulic Fittings

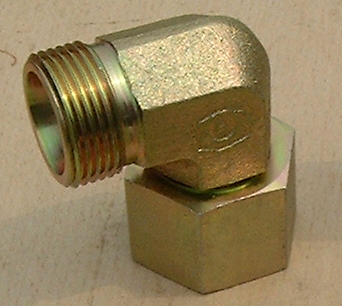

  • 37 <  Flared Hydraulic Tube Fittings SAE J514

  • Flareless Tube Fittings SAE J514

  • O-Ring Plugs SAE J1926

  • Hydraulic Pipe Fittings SAE J1926

  • Adapter Union SAE J516

  • O-Ring face seal fittings  SAE J1453

  • Automotive Tube Fittings SAE J512

  3-Hydraulic Adapters

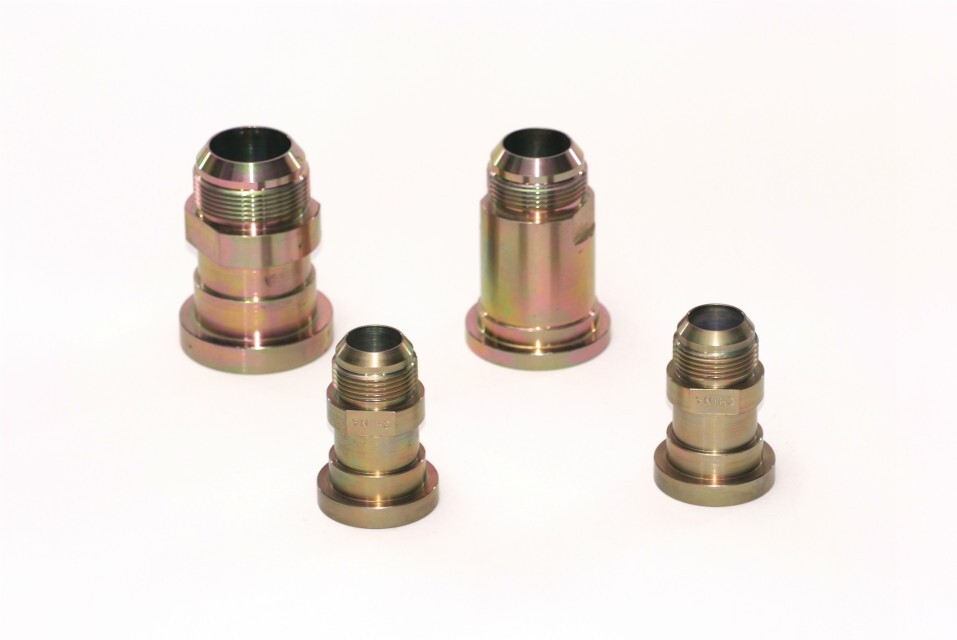

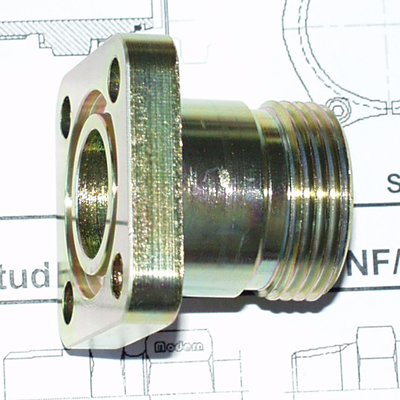

       Split Flange Adapters

  •  Butt weld & Socket weld

  • O-ring straight thread per SAE J1926

  • O-ring face seal thread per SAE J1453

  • Metric O-ring straight thread per ISO 6149

  • NPTF, BSP, BSPT,  threads

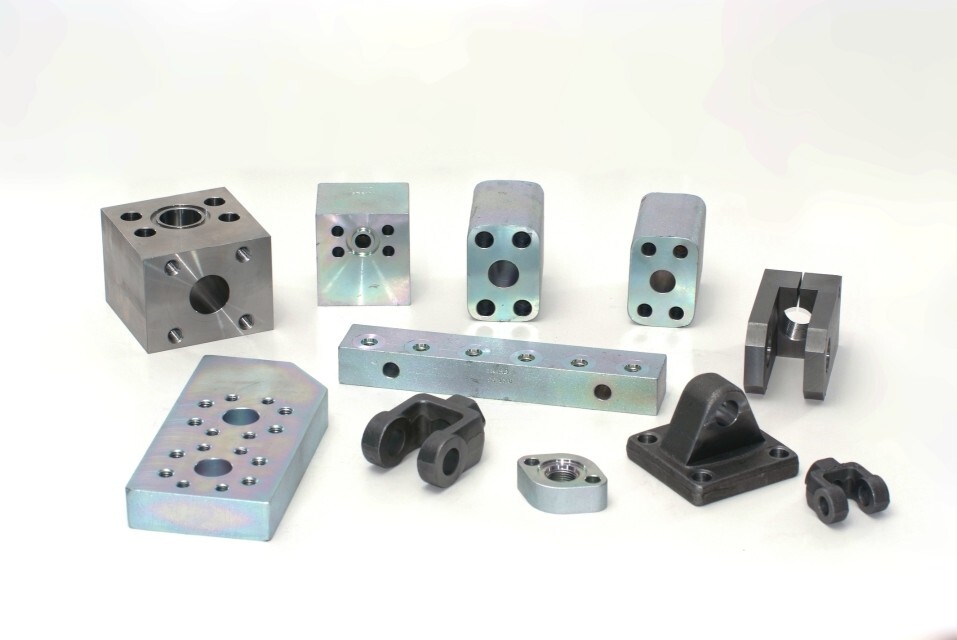

 4-Manifolds

 5-Pipe Flanges & Fittings

  • AWWA Forged & Plate Flanges

  • ANSI B16.5 Forged Flanges

  • API 605 Forged Flanges

  • MSS SP44 Forged Flanges

  • DIN Slip On/Blind/Welding Neck

  • BS 4504

  • JIS 5K/10K/16K  Flanges

  • ANSI B16.9/ANSI B16.28 Elbow,  Tee, Reducer, Cap

 6-Custom Designed Special



  • Caterpillar Special Products

  • Mitsubishi Special Products

  • Nachi Special Products



7-Hydraulic Cylinder Parts

    Manufactured to NPFA Standards

     Forged Cylinder Bracket

  • Clevis Brackets

  • Swivel Eye Brackets

  • Eye Brackets

  • Rod Eyes

  • Rod Clevis

8-Hydraulic Pump Brackets

    SAE Hydraulic Brackets

  • HB-A

  • HB-B

  • HB-C



9-Mounting Kits

  • O-ring seals  NBR 90

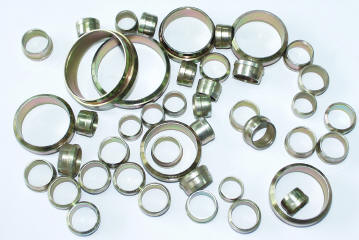

  • Cutting Rings (Tube Sleeves)

  •  Bolts SAE Gr.8

  • Lock Washers
