Products Line

1-Hydraulic Flanges

Click to View Specifications quickly  Split Flange as per SAE J518/ ISO6162

           You may view partial catalogue in PDF

              format (638Kb) by click above



         Both Split and Captive, Metric & Inch use

             code 61 fully sizes from 1/2"-5" ,

             code 62 from  1/2"-3"

             Zinc Dichromate  according to ASTM B117

             Pass 72 Hour Salt Spray Test

         SAE Split Flange With Mounting Kits

            You may view partial catalogue in PDF

               format (144Kb) by click above

          The above include 2 Split half clamps

           4 Gr.8 Bolts, 4 Lock washers and one

          O-Ring Seal

           SAE Split Flange With Welding Parts

           You may view partial catalogue in PDF

              format (651Kb) by click above

 SAE 90 Elbow Flanges



SAE 4-Bolt Welded Ports

  • Butt weld / Butt TIG weld

  • Socket weld (deep & flat)

  • SAE 4-Bolt Threaded Ports

  • O-ring straight thread per SAE J1926

  • O-ring face seal thread per SAE J1453

  • Metric O-ring straight thread per ISO 6149

  • NPTF, BSPP, BSPT threads

  •



                  Square 4-Bolt Welded Ports



    • Socket weld

    •  Butt weld



             Square 4-Bolt Threaded Ports

  • O-ring straight thread per SAE J1926

  • O-ring face seal thread per SAE J1453

  • Metric O-ring straight thread per ISO 6149

  • NPTF, BSP, BSPT threads

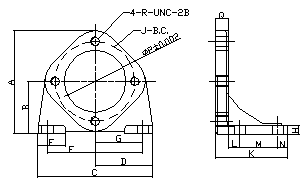

  • Hydraulic Brackets

    SAE-J744, 3 sizes suit for the same specification for Gear Pump,

    Vickers Piston Pump, or Vane Pump and Motors,.

      2-Hydraulic Fittings

         International Standard Hydraulic Fittings

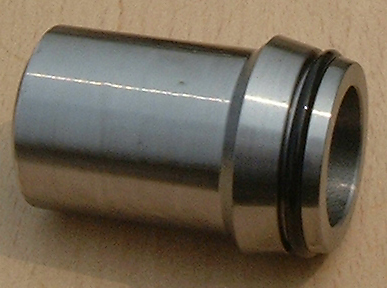

            Hydraulic Metric Standard Fittings



          Click to Enlarge      Click to view large  Click to Enlarge View

           SAE Standard Hydraulic Fittings

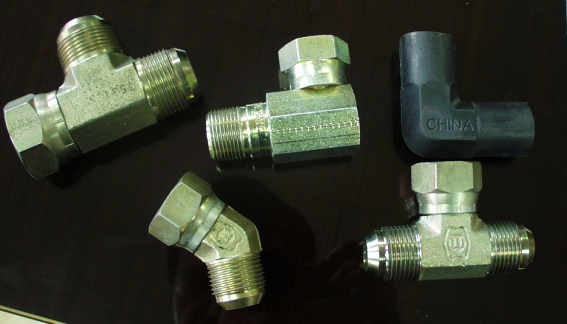

    • 37   Flared Hydraulic Tube Fittings

    • Flareless Tube Fittings SAE J514

    • O-Ring Plugs SAE J1926

    • Hydraulic Pipe Fittings SAE J1926

    • Adapter Union SAE J516

    • O-Ring face seal fittings  SAE J1453

    • Automotive Tube Fittings SAE J512



      3-Hydraulic Adapters

           Split Flange Adapters



    • Butt weld & Socket weld

    • O-ring straight thread per SAE J1926

    • O-ring face seal thread per SAE J1453

    • Metric O-ring straight thread per ISO 6149

    • NPTF, BSP, BSPT,  threads

     4-Manifolds

     5-Pipe Flanges & Fittings

    • AWWA Forged & Plate Flanges

    • ANSI B16.5 Forged Flanges

    • API 605 Forged Flanges

    • MSS SP44 Forged Flanges

    • DIN Slip On/Blind/Welding Neck

    • BS 4504

    • JIS 5K/10K/16K  Flanges

    • ANSI B16.9/ANSI B16.28 Elbow,  Tee, Reducer, Cap

     6-Custom Designed Special



     7-Mounting Kits

       O-ring seals  NBR 90

        Cutting Rings (Tube Sleeves)

        Bolts SAE Gr.8

        Lock Washers

       All above mounting hardware  are available
